The offered range of the PP Non Return Valve Flange End connection, which we have provided to meet the connection need of the variegated industries. We are knowledgeable to create different types of the flange end as per the end user need. Our mastery lies in outlining and assembling welding neck flange, socket weld flange, threaded flange, blind flange, lap joint flange and slip on flange, which we can provide in the any specifications you require. The flange end of this non return valve can be combined with the pipe, pump or any other equipment by means of the welding or screw, which has become the part of petroleum, water, chemical, fertilizer industries for its value over metal valves.

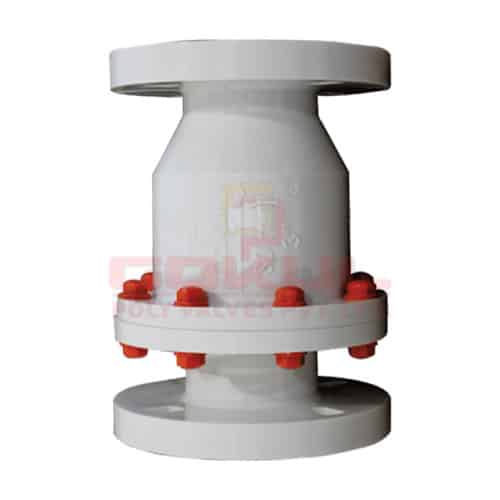

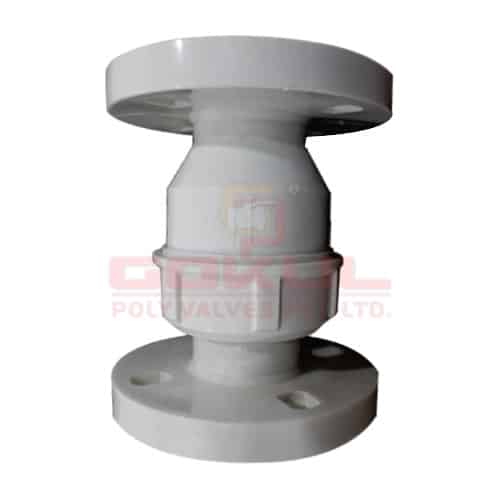

We provide the high-quality PP Non Return Valve Flange End which is designed to provide reliable and prolonged flow control. These valves are of high grade polypropylene (PP), thus lightweight, durable and not corrosive, chemical and rust resistant.
The connection at the flange end is leak-free and provides a firm leak-free fit and thus, the valve can be used in high pressure applications. Our PP Non Return Valves are designed to permit flow only in a single direction to avoid system backflow, which is considered a safety and efficiency measure.
Technical Specification
| Material Of Construction | PP (Polypropylene) / PVDF |
|---|---|
| Design | 2 Piece Design |
| Size Range | 25 mm to 315 mm |
| Maximum working temp | 80 c (consistently) |
| Construction | Ball type design, soft seated, 2 Piece Design |
| Connection End | Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. |
| Test pressure | 10 kg./cm2 |
| Standard | As per manufacturer’s |
